10SSOD-02-LL

10SSOD-02-LL

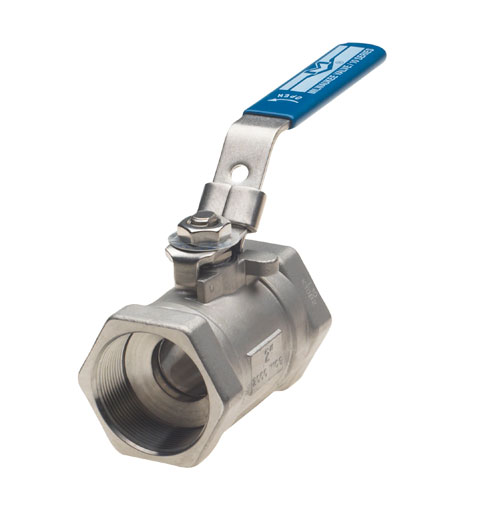

  • Unibody Stainless Steel Ball Valve, 150 SWP – 2000 WOG, Screwed Ends
  • Unibody Series Ball Valve
  • Double Reduced Bore
  • API-607 Firesafe 4th Edition

Product Documents

IOMs

Spec Sheets

Description

Material

Stainless Steel
ANSI/Pressure Rating

150 SWP – 2000 WOG
End Connection

Screwed
Stem Type

Stainless Steel
Body Style

Unibody
Seat Material

RPTFE
Port

Double Reduced Bore
Ball

Carbon Steel
Operator

Lever Handle
Product Size

1/4", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
0.68
4.17 x 0 x 1.97
10
3/8"
0.64
4.17 x 0 x 1.97
10
1/2"
0.64
4.17 x 0 x 1.97
10
3/4"
0.92
4.17 x 0 x 2.2
10
1"
1.6
5.71 x 0 x 2.56
10
1-1/4"
2.18
5.71 x 0 x 2.76
8
1-1/2"
3.3
7.24 x 0 x 3.29
5
2"
4.64
7.24 x 0 x 3.49
5
