1174

1174

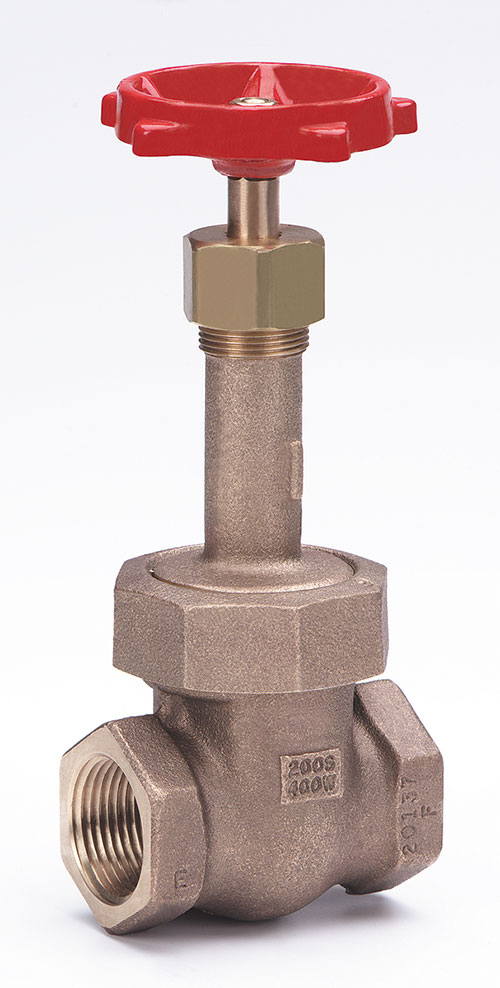

  • Bronze Gate Valve, 200 SWP – 400 WOG, Threaded Ends
  • Conforms to MSS SP-80 , Type 2
  • Not Intended for Use in Potable Water
  • Gland Packed
  • Non-Shock

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Material

Bronze
ANSI/Pressure Rating

200 SWP – 400 WOG
End Connection

Threaded
Stem Type

Rising Stem
Bonnet Type

Union
Seat Material

Stainless Steel
Disc Material

Solid Wedge
Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3"
Valve Type

Gate Valve
Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
1.04
1.81 x 0.25 x 5.13
10
9 x 9 x 2.125
3/8"
1.06
1.88 x 0.375 x 5.13
10
9 x 9 x 2.125
1/2"
1.565
2.25 x 0.5 x 5.5
10
10.5 x 8 x 3
3/4"
2.28
2.5 x 0.75 x 6.25
6
10 x 7.5 x 2.5
1"
2.82
2.88 x 1 x 7.19
6
11 x 8.25 x 3
1-1/4"
4.1
3.25 x 1.25 x 8.56
4
9 x 8 x 3
1-1/2"
6.44
3.5 x 1.5 x 9.63
4
10.5 x 10 x 3
2"
9.6
3.75 x 2 x 11.75
2
12 x 7 x 3.5
2 1/2"
16.36
4.63 x 2.5 x 14.5
1
16 x 5.5 x 5.5
3"
22
5 x 3 x 16.75
1
16 x 5.5 x 5.5
