548T

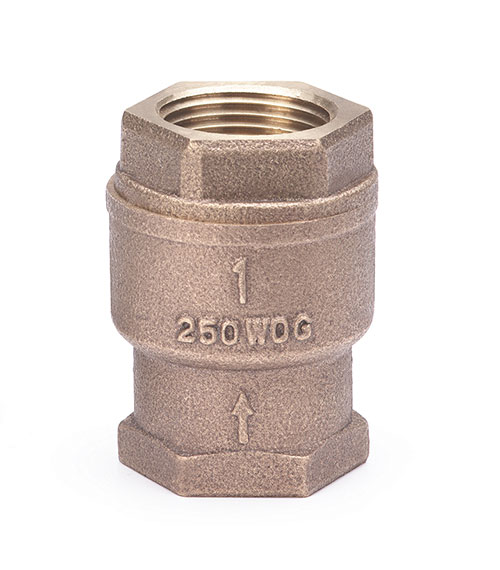

  • Bronze Check Valve, 250 WOG, Threaded Ends
  • Not Intended for Use in Potable Water
  • Non-Shock

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Valve Type

Check Valve
Material

Bronze
ANSI/Pressure Rating

250 WOG
End Connection

Threaded
Body Style

Spring Loaded Lift
Seat Material

Bronze
Disc Material

TFE
Product Size

3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
3/8"
0.38
1.22 x 0.375 x 1.97
6
1/2"
0.38
1.22 x 0.5 x 2.09
6
3/4"
0.6
1.5 x 0.75 x 2.31
6
1"
0.94
1.91 x 1 x 2.66
4
1-1/4"
1.42
2.16 x 1.25 x 3.09
4
1-1/2"
2.02
2.59 x 1.5 x 3.31
4
2"
3.18
3.13 x 2 x 3.78
4
