593A

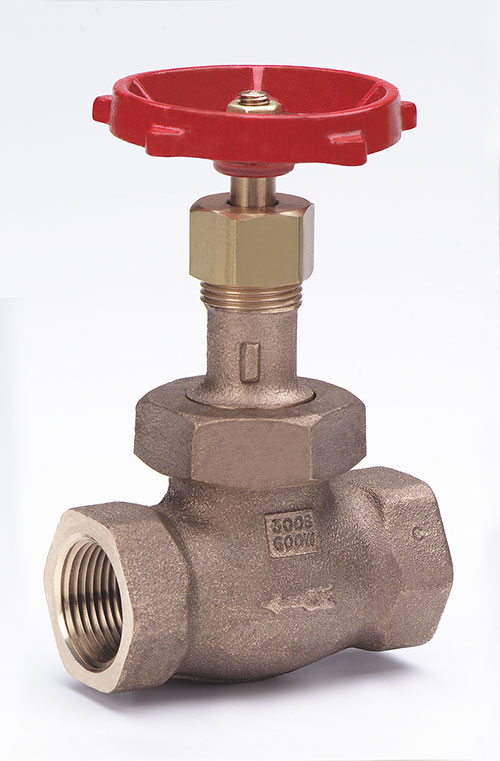

  • Bronze Globe Valve, 300 SWP – 1000 WOG, Threaded Ends
  • Conforms to MSS SP-80
  • Not Intended for Use in Potable Water
  • Gland packed
  • Non-Shock
  • 300 SWP @ 550° F, 1000 WOG @ 150° F

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Material

Bronze
ANSI/Pressure Rating

300 SWP – 1000 WOG
End Connection

Threaded
Stem Type

Rising Stem
Body Style

Straight
Bonnet Type

Union
Seat Material

Stainless Steel
Disc Material

Stainless Steel Seat Ring and Disc
Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
Valve Type

Globe Valve
Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
1
1.88 x 1.75 x 1.56
10
9 x 9 x 2.125
3/8"
1.14
2.38 x 0.375 x 4.44
10
9 x 9 x 2.125
1/2"
1.34
1.88 x 1.75 x 1.56
10
10.5 x 8 x 3
3/4"
2.18
2.25 x 1.88 x 1.5
6
9 x 6 x 3
1"
2.985
3.63 x 1 x 5.38
6
12 x 7 x 3.5
1-1/4"
4.62
4.13 x 1.25 x 6.25
4
12 x 7 x 3.5
1-1/2"
6.795
4.75 x 1.5 x 7.38
4
13.565 x 8.9375 x 4.8125
2"
9.3
5.13 x 2 x 8.38
2
13.565 x 8.9375 x 4.8125
