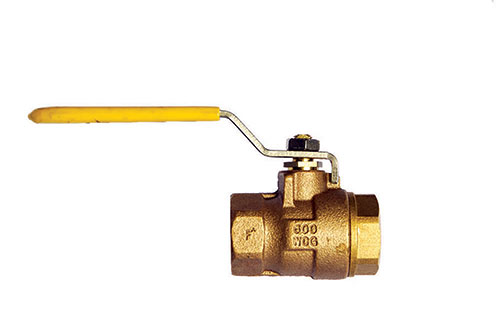

BA-100S-SH

  • Two-Piece Bronze Ball Valve, 600 WOG – 150 SWP, Threaded Ends
  • Not Intended for Use in Potable Water

Product Documents

IOMs

Spec Sheets

Description

Material

Bronze

ANSI/Pressure Rating

600 WOG – 150 SWP

End Connection

Threaded

Body Style

Two – Piece

Seat Material

RPTFE

Port

Standard

Ball

Stainless Steel

Operator

Stainless Steel Handle

Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3"

Add to quote
Category:

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/4"
0.5
1.86 x 0.38 x 1.78
10
6.625 x 5.1875 x 2.8125
3/8"
0.5
1.86 x 0.38 x 1.81
10
6.625 x 5.1875 x 2.8125
1/2"
0.575
2.19 x 0.5 x 1.91
10
6.625 x 5.1875 x 2.8125
3/4"
0.995
2.64 x 0.76 x 2.08
6
6.625 x 5.1875 x 2.8125
1"
1.44
3.17 x 0.88 x 2.25
6
7.5 x 5.5625 x 3.25
1 1/4"
2.365
3.5 x 1.06 x 2.66
6
9.25 x 6.75 x 3.875
1 1/2"
3.26
3.96 x 1.31 x 2.84
4
9.25 x 6.75 x 3.875
2"
4.36
4.3 x 1.56 x 3
4
10.625 x 6.75 x 3.875
2 1/2"
9.4
5.56 x 2 x 3.47
1
8 x 6 x 5
3"
15.8
6.2 x 2.31 x 3.9
1
5 x 5.375 x 6.25
