BB2-350

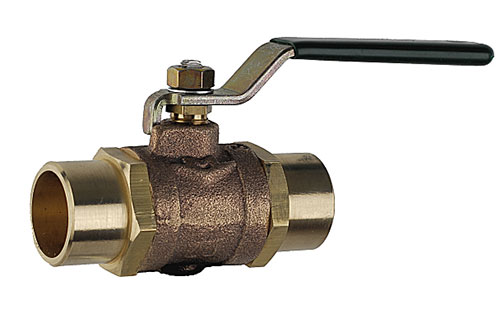

  • One-Piece Bronze Ball Valve, 175 psi, Solder Ends
  • “Butterball” Butterfly Bronze Body Valve
  • AGA/UL/FM Federal Spec WW-V-1967

Product Documents

Spec Sheets

Description

Material

Bronze
ANSI/Pressure Rating

175 psi
End Connection

Solder
Stem Type

Stainless Steel
Body Style

One-Piece
Seat Material

Viton
Port

Full
Operator

Lever Handle
Disc Material

Stainless Steel
Product Size

1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
Add to quote
Categories: ,

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
3/8"
0.46
2.38 x 1.88 x 1.75
36
13.8125 x 8.75 x 1.9375
1/2"
0.47
1.88 x 1.75 x 1.56
36
13.8125 x 8.75 x 1.9375
3/4"
0.64
2 x 1.88 x 1.56
36
20.1875 x 8.625 x 2.0625
1"
0.895
2.13 x 2.69 x 1.75
24
20.1875 x 8.625 x 2.0625
1 1/4"
1.615
2.63 x 2.69 x 2.19
12
14.25 x 9.5 x 2.75
1 1/2"
1.9
2.88 x 2.94 x 0
12
16 x 11.3125 x 3.6875
2"
3.455
3.25 x 3.19 x 3.63
6
14.25 x 9.5 x 2.75
