969

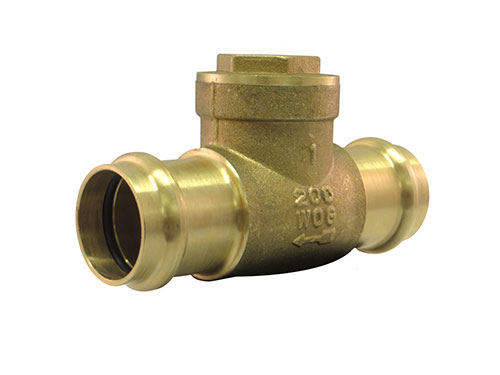

  • Brass Check Valve, 200 psi @ 250 Degrees F, Press x Press Ends
  • Conforms to MSS SP-80 , Type 3
  • Not Intended for Use in Potable Water
  • Non-Shock

Product Documents

IOMs

Spec Sheets

3D CAD Files

Description

Valve Type

Check Valve

Material

Brass

ANSI/Pressure Rating

200 psi @ 250 Degrees F

End Connection

Press X Press

Body Style

Horizontal Swing

Seat Material

Bronze

Product Size

1/2", 3/4", 1", 1-1/4", 1-1/2", 2"

Add to quote
Categories: ,

Weights, Dimensions, and Box Quantity

Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
1/2"
0.46
3.35 x 0.5 x 1.38
10
6.9685 x 6.9685 x 1.9685
3/4"
0.64
3.74 x 0.75 x 1.43
6
7.874 x 4.685 x 2.126
1"
0.96
4.36 x 1 x 1.74
6
9.0551 x 5.3543 x 2.5591
1-1/4"
1.36
4.97 x 1.25 x 1.99
4
8.2283 x 5.2756 x 2.9921
1-1/2"
2.28
6.13 x 1.5 x 2.28
4
9.6457 x 6.4173 x 3.4646
2"
3.48
7.16 x 2 x 2.48
2
7.3622 x 6.1024 x 3.937
