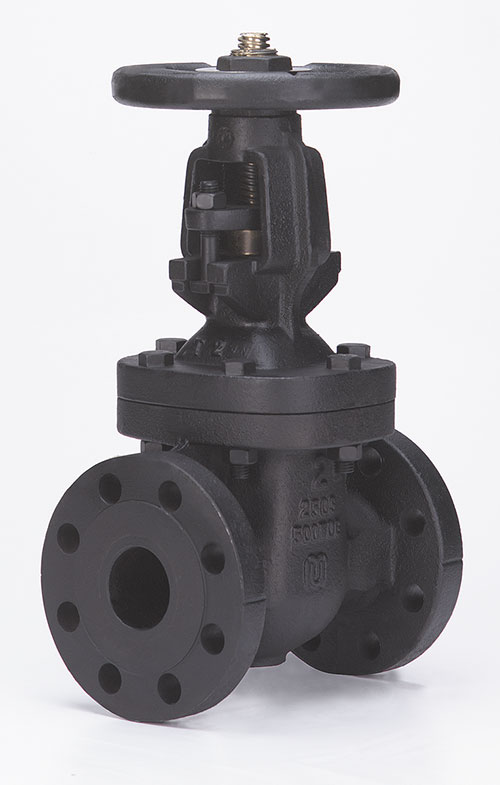

F-2894A

  • Cast Iron Gate Valve, 250 SWP – 500 WOG, Flanged Ends
  • Conforms to MSS SP-70
  • Gland Packed
  • Non-Shock

Product Documents

IOMs

Spec Sheets

3D CAD Files

Add to quote

Description

Material

Cast Iron

ANSI/Pressure Rating

250 SWP – 500 WOG

End Connection

Flanged

Stem Type

OS&Y

Bonnet Type

Bolted

Seat Material

Bronze

Disc Material

Solid Wedge

Product Size

2", 2-1/2", 3", 4", 5", 6", 8", 10", 12"

Valve Type

Gate Valve

Category:
Size
Unit Weight
Unit Dims.
LxWxH
Box Quantity
Box Dims.
LxWxH
2"
51.278
8.5 x 2 x 16
1
2-1/2"
69.716
9.5 x 2.5 x 17.88
1
3"
100
11.13 x 3 x 20.13
1
4"
163.5
12 x 4 x 26.75
1
5"
224
15 x 5 x 31.13
1
6"
292
15.88 x 6 x 33.75
1
8"
464
16.5 x 8 x 45.25
1
10"
722
18 x 10 x 54
1
12"
916
19.75 x 12 x 54.25
1
